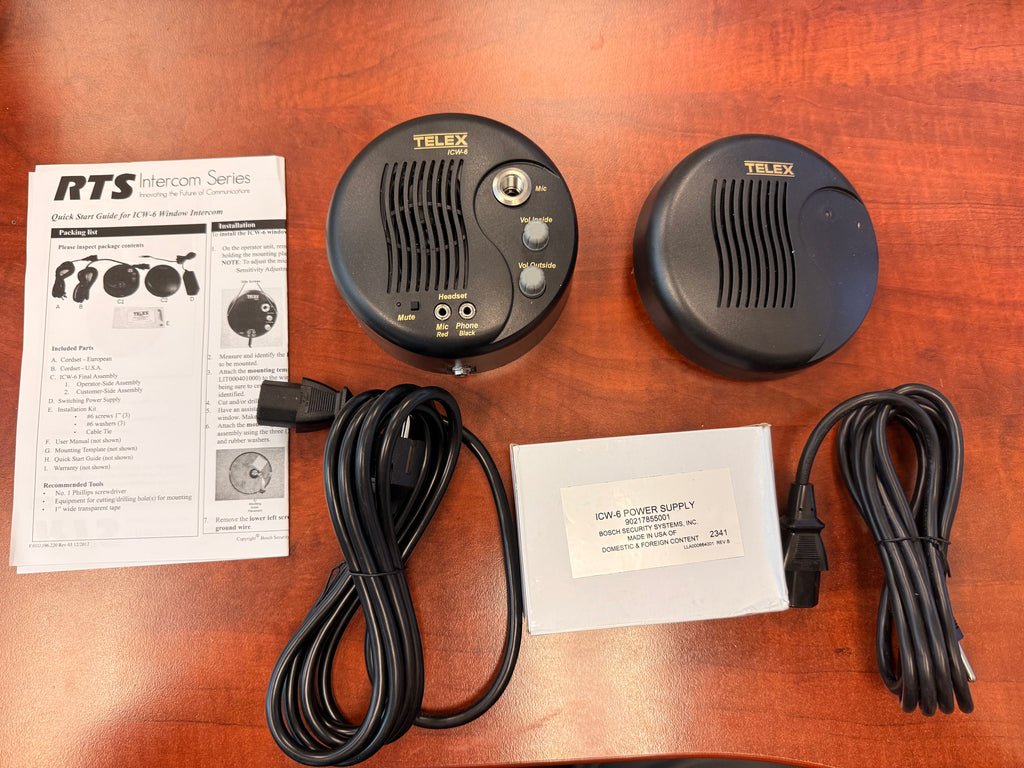

RTS ICW6 Window Intercom without Mic
2 - Available New
Superior audio quality speeds ticket window traffic flow.
The ICW-6 Window Intercom from Telex is loaded with design features that ensure faster ticket-window traffic, reduce costly errors, and provide easy installation and setup. Unique audio-shaping circuitry means maximum voice intelligibility, translating to quick, accurate transactions and satisfied customers. Enhanced VOX and full-duplex design eliminates frustrating interruptions in audio, for more natural conversations and a reduction in costly errors. Customize your ICW-6’s interface and maximize efficiency with two handsfree operation modes—gooseneck mic operation enables users to move freely to access cash drawers or information sheets without being tethered by a headset, whole headset operation provides a higher level of privacy and reduces ambient noise levels in multi-user environments. Heave-duty mounting hardware and an easy mounting configuration makes installation fast and simple, and the ICW-6’s super-strong, high-tech polycarbonate fiber resin material makes it virtually indestructible.
Features
- Superior audio quality ensures quick, accurate transactions
- Gooseneck or headset handsfree operation
- Enhanced VOX and full-duplex design eliminate interruptions
- Easy installation and setup with included hardware
- Rugged design and construction for reliable performance
Specifications
- General
- Power Requirement: 50mA max @ 110-240VAC, 5VDC 600mA maximum
- System Frequency Response: 200 to 4.5 kHz ±3 dB
- Environmental: -20° C to 55° C, 0% to 90% humidity, non-condensing
- Outputs
- External Speaker: 2W: 100dB SPL at 1ft. at 1 kHz, C weighting
- Internal Speaker: 2W: 100dB SPL at 1ft. at 1 kHz, C weighting
- Note: These are sine wave maximums. Voice measurements will range 70 to 90 dB SPL.
- Headphones: 80 mW: 100dB peak SPL; Voice Range: 84 to 104 dB SPL; Impedance: 50 O
- Inputs
- Internal Panel Microphone: Electret: 4 mv at 1kHz, typical into 1000 ohms source impedance
- External Headset Microphone: Dynamic: range 4 mv at 1kHz, typical into 200 ohms; Source Impedance Dynamic: 200 ohms
- Options
- Gooseneck Microphone: MCP-90-3, MCP-90-8, MCP-90-12, MCP-90-18
- Headsets: PH-44-IC3 (Dual Headphone), PH-88-IC3 (Single Headphone)
