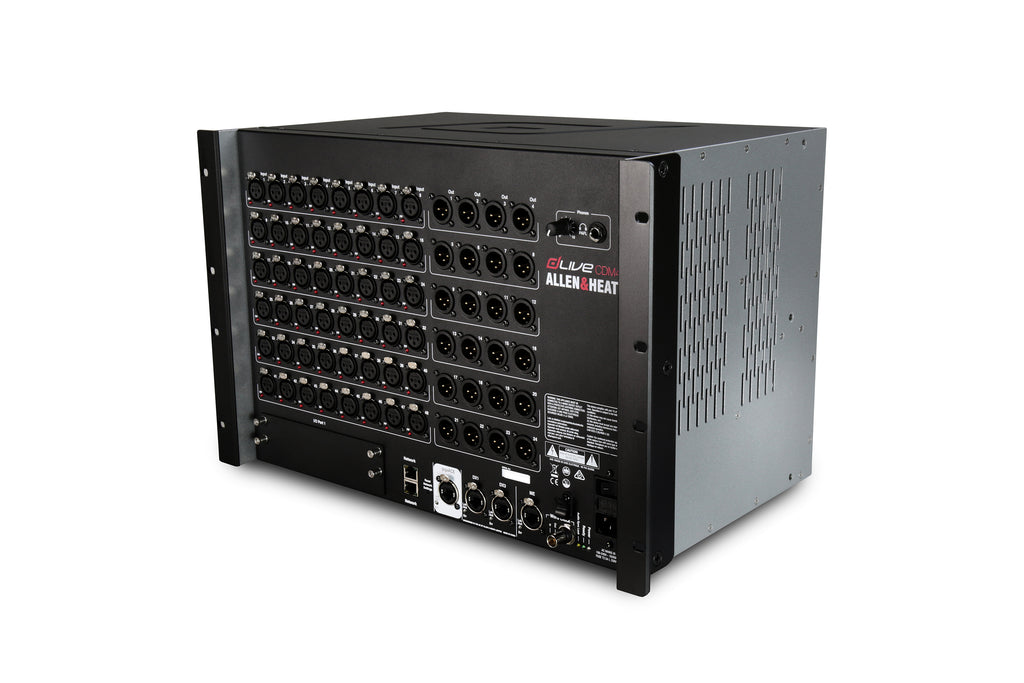

Allen & Heath CDM48 MixRack
Only 1 Available
The Allen & Heath CDM48 MixRack delivers transparent, detailed audio through its recallable preamps with Active PAD and 96 kHz variable-bit-depth processing, providing ultra-low noise, exceptional dynamic range and ample mix headroom.
Its 16 integrated RackExtra FX engines provide a comprehensive selection of reverbs, delays, modulators and other processing, each with a dedicated stereo return.
The CDM48 can be operated with a dLive Surface or controlled without a Surface using dLive Director for PC or Mac, dLive MixPad for iPad, and compatible Allen & Heath IP controllers.
Features:
-
48 mic/line inputs
-
24 line outputs
-
One 128-channel, 96 kHz I/O port
-
XCVI 160×64 FPGA core
-
96 kHz sample rate
-
Variable bit-depth processing for exceptional precision and low-noise performance
-
96-bit accumulator for virtually unlimited mix headroom
-
Class-leading latency of less than 0.7 ms
-
128 input channels with full processing
-
64 mix outputs with full processing
-
Configurable 64-bus architecture for groups, FX, auxiliaries, matrices and mains
-
LR, LCR and up to 5.1 mains configurations
-
Multiple PFL buses
-
16 RackExtra FX engines with dedicated stereo returns
-
DEEP processing with embedded processing and compressor modelling
-
24 DCAs
-
Automatic Mic Mixer for up to 64 channels across one, two or four zones
-
Built-in signal generator and RTA
-
Transparent preamp design
-
Active PAD circuitry for consistent performance with a wide range of sources
-
Reversible rack ears
-

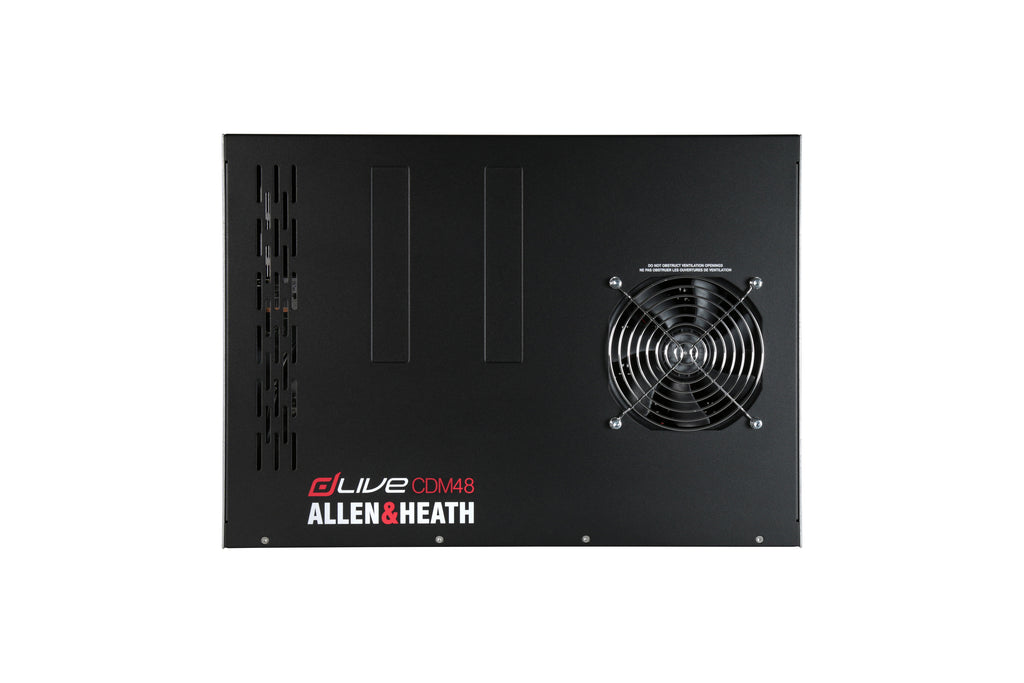

Flush front panel with ultra-quiet fan
Connections and Expansion:
-
Integrated gigaACE connection for a dLive Surface
-
Two DX links for I/O expansion
-
One 128-channel, 96 kHz I/O expansion-card port
-
Dedicated 48 kHz ME personal-monitoring port
-
Two network ports
-
Word Clock BNC input and output
-
Support for up to 12 DX I/O expanders using DX Hub modules or DX Link cards
-
Support for up to two dLive Surfaces:
-
One through the integrated gigaACE connection
-
One through an optional gigaACE card
-
-
Integrated power supply
Please note: This is the original CDM48 and does not include the optional RackUltra FX card.
