Clear-Com

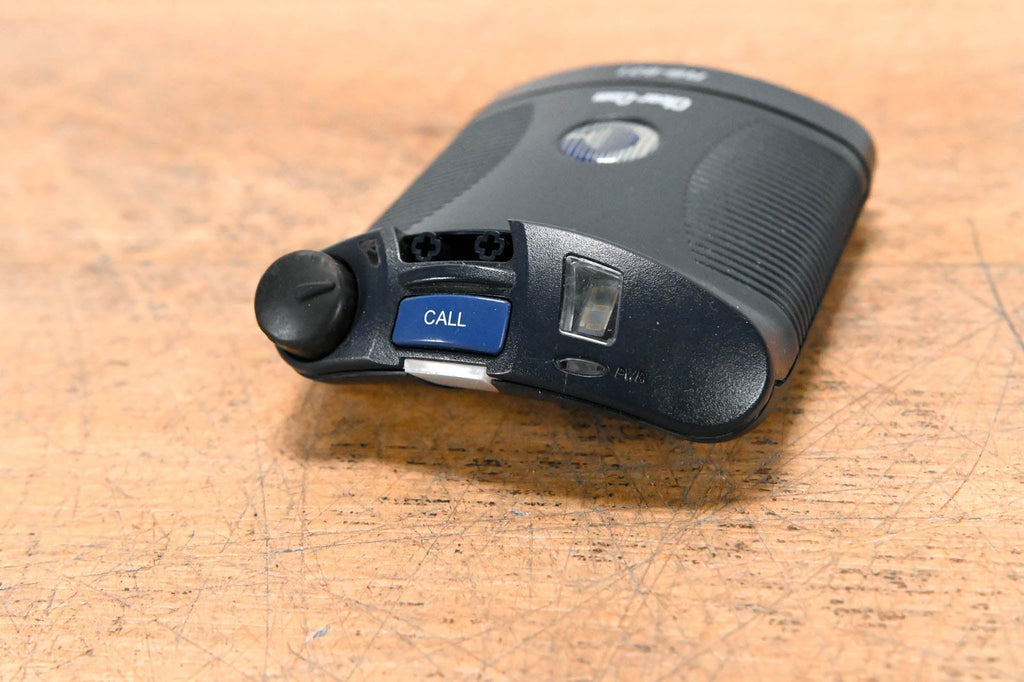

RS-601 Single Channel Intercom Belt Pack

- 30 Available

The RS-601 offers all the performance and durability of Clear-Com’s world-standard beltpacks, plus TW compatibility. You can use the RS-601 on a TW line (Audio on Channel B) without loading down Channel A.

Features:

• One intercom channel

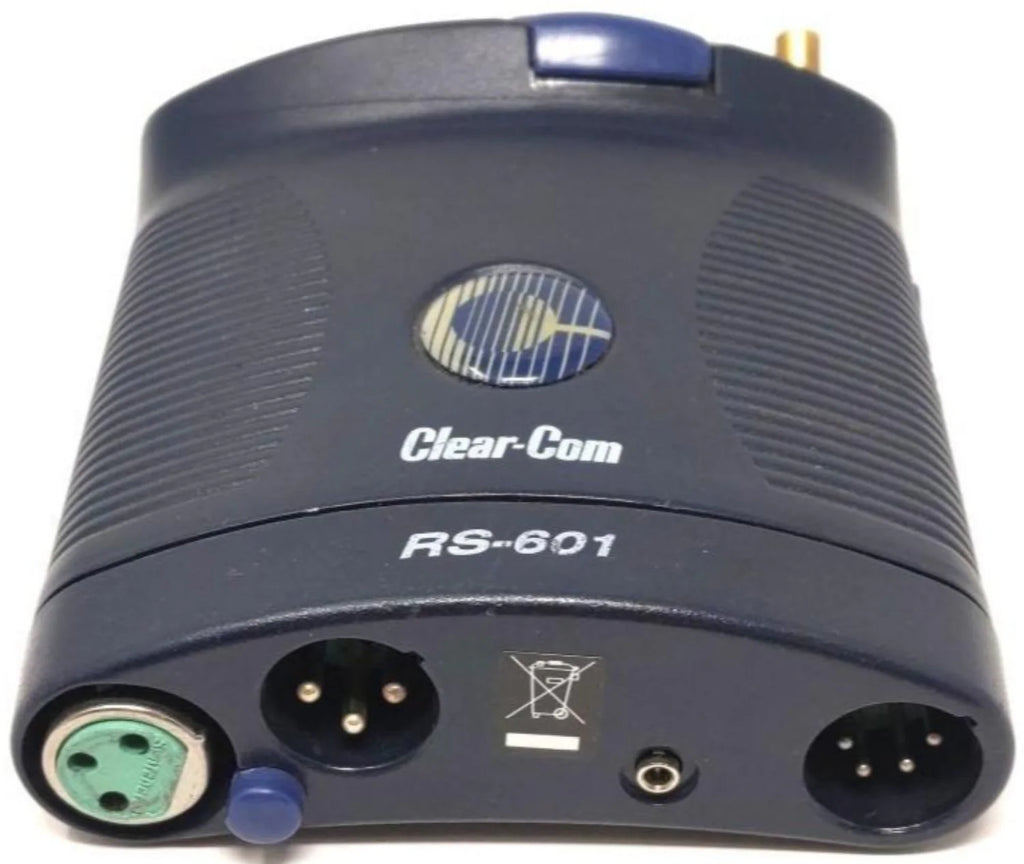

• 3-pin female and male XLR connectors for ease of setup
• 4-pin male XLR to connect a headset

Specifications:

• General
  • Amplifier Design: I.C. amplifiers, including solid-state digital switching and signaling circuits. Current-limited and shortcircuit protected.
  • Signal to Noise: >75 dB
  • Bridging Impedance: >15k
  • Line Level: -14 dB, +5 dB max.
  • Sidetone Adjust: >35 dB
  • EMI and RFI rejection: >60 dB
• Microphone Pre-Amplifier
  • Headset Mic Impedance: 200 ohms
  • Gain, mic to line: 41 dB (dynamic)
  • Limiter Range: 26 dB
  • Frequency Response: 200 Hz – 12 kHz contoured for intelligibility
• Headphone Amplifier
  • Load Impedance: 50 - 2,000 ohms
  • Output Level: +17 dBv before clipping
  • Distortion: <0.1% THD @ 1 kHz
  • Gain, line to output: +34 dB
  • Frequency Response: 100 Hz - 18 kHz, ±2dB
• Connectors
  • Intercom Line: (2) 3-pin XLR–M–F
  • Headset: 4-pin XLR–M
• Power Requirements
  • 26mA quiescent
  • 30mA average talk
  • 50mA talk with signaling
  • DC Voltage Range: 12-32 volts
• Environmental
  • Operating Temp. Range: 0°C - 70°C (32°F - 158° F)
  • Humidity: 0 - 90% relative humidity
• Dimensions
  • 4.58"H x 3.73"W x 1.34"D (116 x 95 x 34 mm)
• Weight
  • 7.3 oz. (0.20 kg)
