Martin M1 Lighting Console

In Flight Case, 2 available

M1 is the previous generation lighting controller from Martin Professional. With the full power of a larger desk and the agility of a smaller one, it is a state-of-the-art all-in-one lighting desk.

Features:

• High resolution folding touchscreen
• Digital LCD buttons for fast and direct parameter access
• Multiple wing attachment (M-Series Modules)
• 4x DMX Universes direct from the console; up to 32 Universes with Art-Net /sACN
• M-Series Manager Software for programming and triggering via time and calendar schedules
• Customizable Graphical User Interface with context sensitive toolbars and integrated help menu
• Powerful effects engine
• Controls up to 16.536 parameters
• 1000 cuelists with fader control
• 1000 cuelists with playback control buttons
• Two separate playback sections
• Parallel execution of multiple cuelists
• Submaster, inhibitives and override functionality
• Parameter and time-fanning functionality
• Auto update for presets and cues
• On-the-fly global timing adjustments

Specifications:

• Physical
  • Length: 823 mm (32.4 in.)
  • Width: 464 mm (18.3 in.)
  • Height: 178 mm (7.0 in.) closed; 395 mm (15.6 in.) open
  • Weight: 14.4 kg (31.8 lbs.)
  • Shipping weight (in cardboard box): 19.9 kg (43.9 lbs.)
  • Shipping weight (in flightcase): 32.7 kg (72.1 lbs.)
• Control and Programming
  • Protocol: DMX512A (RDM), Art-Net2, sACN
  • 32 DMX universes
  • 8192 parameters
  • No limit to number of DMX channels per fixture
  • Extensive fixture library for all known manufacturers
  • 65000 presets for each group of functions (P/T, color, gobo, etc.)
  • Effect generator for automated programming of complex effects
  • Relative or absolute programming
  • Fan function for all channels (including timing parameters)
  • On-the-fly global timing changes
  • Virtual cuelists
  • Macros
  • Wait, follow and link cues
  • HTP, LTP, chase, timecode, submaster and group master playback
  • functionality
  • Individual parameter timings
  • Intuitive patch feature
  • Fixture type cloning
  • All channels with 16-bit resolution
• Control/User Interface
  • Main playback:
    • 10 x 60 mm playback faders, each with four function-assignable buttons
  • Sub playback:
    • 24 x playbacks
    • 12 x 40 mm playback faders with one assignable button
    • 12 x single assignable buttons
  • Other controls:
    • 2 x scrollwheels for bank changes
    • 12 x customizable multi-function keys
    • Playback Select button
    • Master Go section with Go, Pause, Snap and Release
    • Four digital rotary encoders with push function and status LED for fixture parameter control
    • 5 x dynamically labeled digital LCD buttons for parameter groups, effect parameters, fanning and global timings
    • Grand master fader and button
    • Blind/preview button
    • Customizable highlight/lowlight function
    • Customizable parameter defaults
    • Next/last fixtures/groups
    • Trackball with pan/tilt control switch
    • Left/right mouse button
    • Large command keys
    • Optional external monitor screen: Resolution up to 1920x1200
• Playback
  • Assign a cue, cuelist or effect to any playback fader
  • 100 x playback banks, each containing 10 x playbacks
  • 100 x sub playback banks, each containing 24 x playbacks
  • 100 x sub playback banks, each containing 24 x playbacks
  • No limit to cues per cuelist
  • Full 16-bit fading for high-resolution fixtures
  • Individual fade in/fade out times for all playbacks
  • Manual override available at all times
  • Live 0-1000% override of global cue timings
  • Live programmer timing (“Sneak”)
  • Cuelists can be executed in tracking or non-tracking mode
• Hardware
  • Industrial 13.1-inch TFT 16:9 touchscreen (1280 x 800 pixels)
  • Internal SATA 2.5” hard disk drive
  • Modular construction
  • Industrial motherboard with Intel processor
  • 2 GB RAM
  • Integrated graphics
  • 2 x dimmable XLR desk lamp connections
• Connections
  • Industrial embedded OS
  • OS installation by USB storage device
  • Show backup on hard disk or USB storage device (not included)
  • Support for ELO USB touchscreens

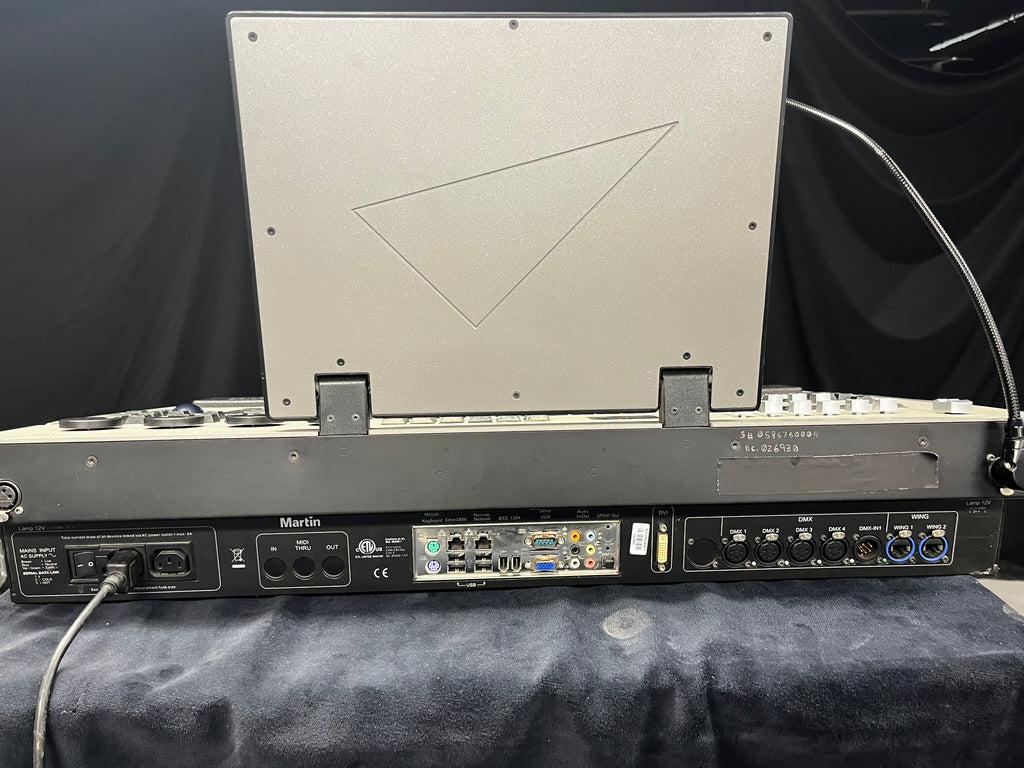

• Connections
  • 4 x DMX universe outputs: 5-pin locking XLR
  • External monitor screen: VGA or DVI
  • Art-Net / sACN for up to 32 DMX universes in total: RJ-45
  • MaxNet controller link: RJ-45
  • 2 x M-Series Module interfaces: RJ45 Ethercon
  • MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode):
  • Optional
  • 2 x desk lamps: XLR
  • AC power input: 3-pin IEC
  • AC power throughput: 3-pin IEC (6 A max.)
  • USB (storage media/hardware peripherals)
  • Back of mainboard: 4 x USB 3.0
  • Side of console: 2 x USB 2.0
  • Front of console: 1 x USB 2.0
• Electrical
  • AC power: 100-240 V nominal, 50/60 Hz
• Typical Power and Current
  • 0.75 A, 80 W
• Included Items
  • 1.5 m power cable, EU (Schuko), 3-pin IEC: P/N 11501012
  • 1.5 m power cable, US, 3-pin IEC: P/N 11501502
  • Martin ShowDesigner 6™ Lite 3D Visualizer 180-day trial
  • User documentation CD
• Accessories
  • Martin M-Sync™ SMPTE USB Interface Box: P/N 90703020
  • USB-MIDI Port Internal Module: P/N 91613038
  • LED desklight, angular XLR, 18.5": P/N 91613037
  • Dust cover for M1: P/N 91613070
  • Flightcase for M1: P/N 91535070
  • Martin™ M-PC 2U with Martin™ M-DMX: P/N 90737070
• Related Items
  • M-Series Submaster Module: P/N 90732170
  • M-Series Playback II Module: P/N 90732190
  • Martin™ M-Touch: P/N 90737040
  • Martin™ M-Play: P/N 90737030
• Ordering Information
  • Martin M1 ts™ Console: P/N 90732040
