Used Martin M2GO
Used Martin M2GO
Used Martin M2GO
Used Martin M2GO
Used Martin M2GO
Used Martin M2GO

Used Martin M2GO

  • Sale
  • $2,600.00
Shipping calculated at checkout.

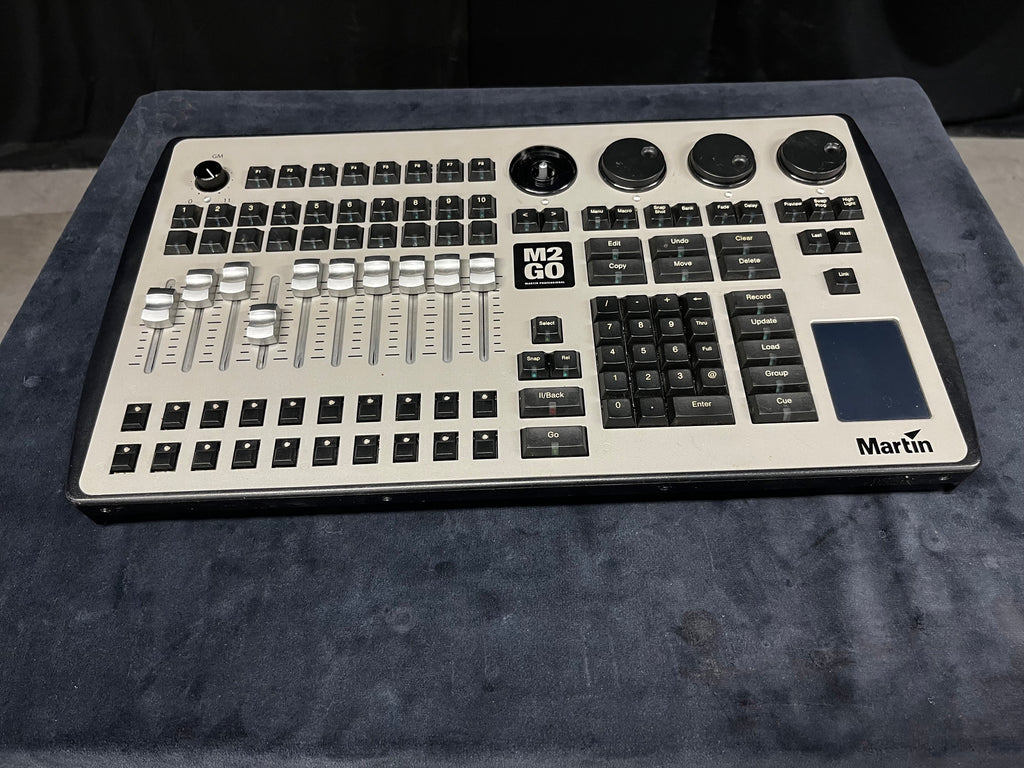

Martin M2GO Ultra-Portable Lighting Console

In Flight Case

Equipped with a fast, dual-core processor with no external computer required, the M2GO answers the demand for a more powerful lighting console in a smaller form. It offers a professional level of features in a portable package and has been developed with cost, ergonomics, feature set, size and weight in mind. The M2GO is a unique, portable and powerful lighting console.

Features:

  • Built-in Industrial Dual Core CPU, 32GB SSD, 4GB RAM, HDMI, VGA, Dual Gigabit Artnet and Maxnet
  • Portability
  • 8 customizable function keys
  • 10 playbacks
  • Customizable Graphical User Interface with context sensitive toolbars and integrated Help menu
  • Parallel execution of multiple cuelists
  • Parameter and Time-fanning functionality
  • Up to 4x DMX Universes direct from the console
  • 3.5" touchscreen for fast and direct parameter access
  • 4 digital encoders for parameters8 customizable function keys
  • 4 DMX ports standard; additional external DMX ports can be added as options
  • Standard license for 4 Universes
  • Powerful effects engine
  • 1000 cuelists with fader control
  • 1000 cuelists with playback control buttons
  • Submaster, Groupmaster and Override functionality
  • Auto update for presets and cues
  • On-the-fly global timing adjustments
  • Mx Manager Software for programming and triggering via time and calendar schedules
  • Multiple wing attachment (MaxModules)

Specifications:

Control and Programming

  • Protocol: DMX512A (RDM), Artnet2
  • 4 DMX universes
  • 2048 channels
  • No limit to number of DMX channels per fixture
  • Extensive fixture library for all known manufacturers
  • 65000 presets for each group of functions (P/T, color, gobo, etc.)
  • All channels with 16-bit resolution
  • Macros
  • Wait, follow and link cues
  • HTP, LTP, chase, timecode, submaster and group master playback functionality
  • Individual parameter timings
  • Intuitive patch feature
  • Fixture type cloning
  • Effect generator for automated programming of complex effects
  • Customizable highlight and lowlight function to identify individual fixtures
  • Relative or absolute programming
  • Fan function for all channels (including timing parameters)
  • On-the-fly global timing changes
  • Virtual cuelist

Control/User Interface

  • Main playback interface: Ten 60 mm playback faders, each with four function-assignable buttons
  • Eight customizable multi-function keys
  • Playback Select button
  • Master Go section with Go, Pause, Snap and Release
  • Four digital rotary encoders with push function and status LED for fixture parameter control
  • 3.5" touchscreen for parameter groups, effect parameters, fanning and global timings
  • Grand master rotary fader and button
  • Blind/preview button
  • Customizable highlight/lowlight function
  • Customizable parameter defaults
  • Next/last fixtures/groups
  • Large command keys

Playback

  • Assign a cue, cuelist or effect to any playback fader
  • 100 playback banks, each containing 10 playbacks
  • 100 pages of 100 playbacks activated by touchscreen button
  • No limit to cues per cuelist
  • Full 16-bit fading for high-resolution fixtures
  • Individual fade in/fade out times for all playbacks
  • Manual override available at all times
  • Live 0-1000% override of global cue timings
  • Live programmertiming ("Sneak")
  • Cuelists can be executed in tracking or non-tracking mode

Hardware

  • Industrial 3.5" RGB touchscreen
  • Internal 32 GB SSD storage drive
  • Industrial motherboard with dual-core processor
  • 4 GB RAM
  • Integrated graphics processor

Software

  • Industrial Windows 7 embedded OS
  • OS installation by USB storage device
  • Show backup on SSD disk or USB storage device (not included)
  • Supports Elo USB, generic Windows 7 and DisplayLink-compatible touch devices

Connections

  • 4 x DMX universe outputs: 5-pin locking XLR
  • External monitor screen: VGA and HDMI
  • Artnet for up to 8 DMX universes in total: Gigabit RJ-45
  • MaxNet controller link: Gigabit RJ-45
  • 5 x storage media/hardware peripherals: USB 2.0
  • Ready to receive internal MIDI module and SMPTE timecode module
  • 12 VDC power supply input: 4-pin XLR
  • Desk lamp (dimmable): XLR

Electrical

  • AC mains power to 12 VDC external PSU (included): 100-240 V nominal, 50/60 Hz
  • Maximum current: 1.4 A
  • 12 VDC output: 5 A, 60 W max.
  • Included Items
  • 1.5 m power cable, EU (Schuko), 3-pin IEC:
  • 1.5 m power cable, US, 3-pin IEC:
  • MW 12 VDC 5 A external PSU:
  • LED desklight, angular XLR, 13": 91613090
  • Martin ShowDesigner 6 Lite 3D Visualizer 180-day trial:
  • User documentation CD

Physical

  • Length: 300 mm
  • Width: 540 mm
  • Height: 99 mm
  • Weight: 5.2 kg
