Used MA Lighting MA2 8Port Node
Used MA Lighting MA2 8Port Node
Used MA Lighting MA2 8Port Node
Used MA Lighting MA2 8Port Node

Used MA Lighting MA2 8Port Node

  • Sale
  • $1,500.00
  • $2,000.00
Shipping calculated at checkout.

2 Available

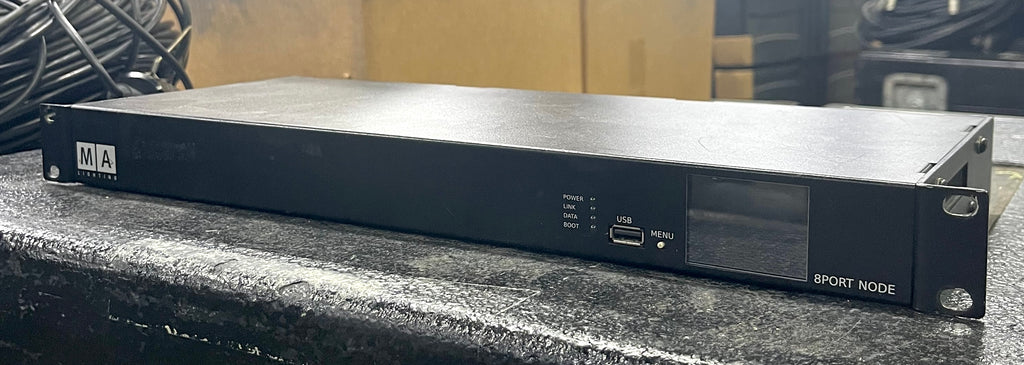

MA 8Port Node

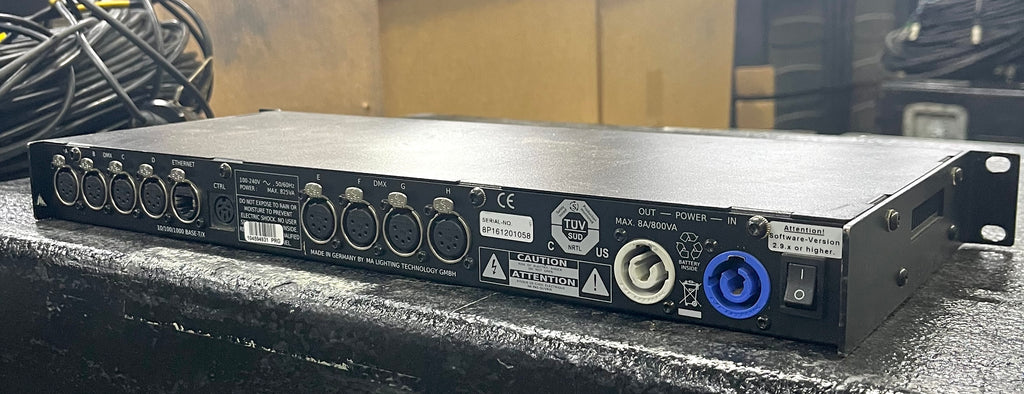

The MA 8Port Node is the perfect solution for converting a large amount of DMX universes at the same location. The MA 8Port Node offers the same amount of DMX universes like a MA NPU (Network Processing Unit). All eight DMX outputs as well as the main switch, one powerCON and one etherCON connector are located at the rear side of the node. The MA 8Port Node comes as a 19"/1HU version for rack use.

Features

  • • Speaks MA-Net2, Art-Net and sACN via 1Gbit/s connection
  • • Fully configurable from a grandMA2 console/grandMA2 onPC
  • • 2" colour TFT display
  • • Rugged steel housing for flexible use or mobile applications
Operating voltage/ Supply voltage 100V-240V, 50/60Hz
Power 30VA
Dimensions 485 x 47 x 190mm / 19 x 1.8 x 7.5inch
Net weight 2.2kg / 4.8lbs
Output connectors 8 x XLR 5pin (DMX)
1 x CTRL (future use)
1 x etherCON
Input connectors 1 x powerCON
1 x USB
