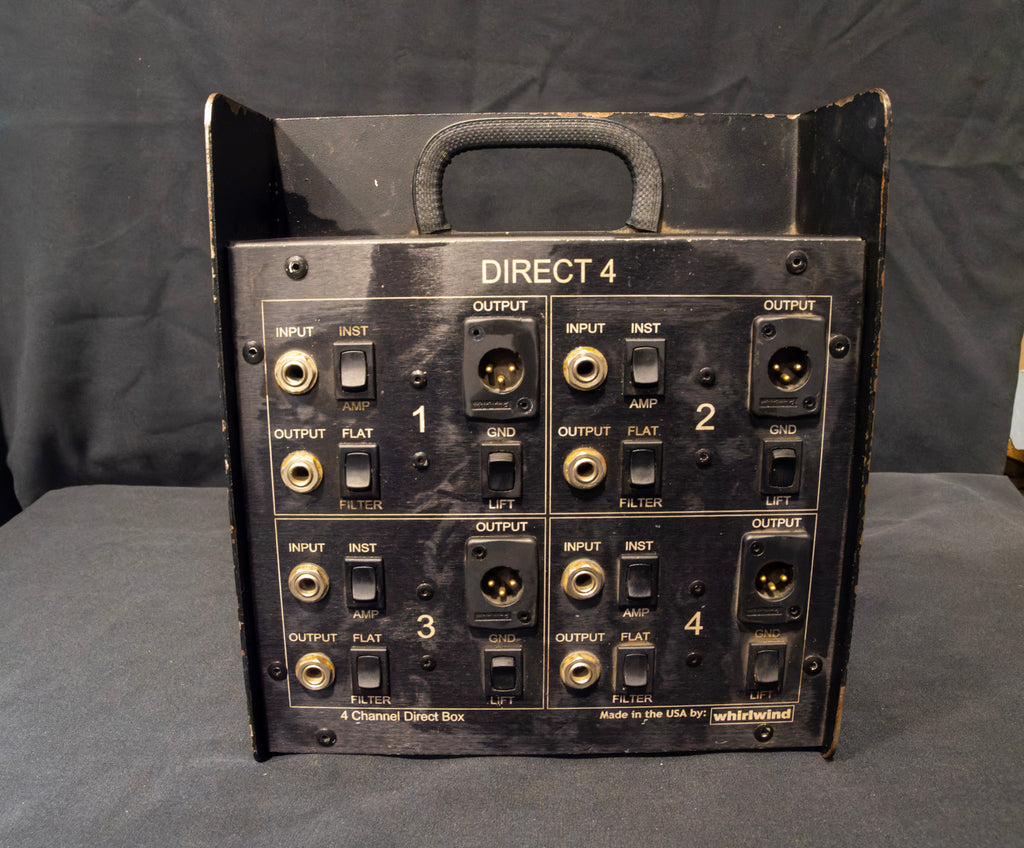

Whirlwind DIRECT4
1 Available
The DIRECT4 is a four channel, passive direct box from Whirlwind that converts unbalanced line, instrument or speaker level signals to low impedance balanced microphone levels, which are then suitable for imputing to a console or microphone preamp.
The unit is a passive device and therefore requires no external power supply. Each channel features a ground lift switch and a 20dB pad for selecting between line/instrument or speaker level signals.
The input and output grounds of each section are isolated from each other. This allows the DIRECT4 to be used as if it were four completely separate DIs without fear of creating ground loop interaction.
1/4" parallel wired in/out jacks
20dB pad switches for selecting between line/instrument or speaker level input signals
Ground Lift switches to help eliminate hum and buzz
Filter switch to help reduce amplifier noise and hiss
